Quality beginsbefore inspection.
Drawings, materials, interfaces, critical dimensions and verification expectations must be understood before production. Quality is structured around the technical basis of the project — not treated only as a final-stage check.
Defined requirement.
Controlled route.
Verified supply.
For drawing-based industrial manufacturing, quality starts with clarity. The technical input establishes what must be controlled, the manufacturing route determines how those requirements are protected, and verification confirms the agreed scope before supply.
Quality control starts
with what must be true.
The inspection plan should follow the actual function of the component. Not every dimension carries the same technical risk; critical characteristics, interfaces and material requirements are identified from the project basis.
Drawing & Revision
Current drawing, CAD model, revision status and agreed scope form the reference for production and verification.
Material
Grade, condition and project-specific material requirements are reviewed before the manufacturing route is confirmed.
Critical Dimensions
Application-relevant dimensions, fits and interfaces are identified so inspection effort follows technical importance.
Geometry
Form, orientation, datum strategy and complex features are considered when defining appropriate verification methods.
Surface & Finish
Surface condition, finishing and post-process requirements are treated as part of the defined manufacturing scope.
Documentation
Required material, inspection or project documentation is agreed at the technical review stage where applicable.
Measure what matters.
Against the defined scope.

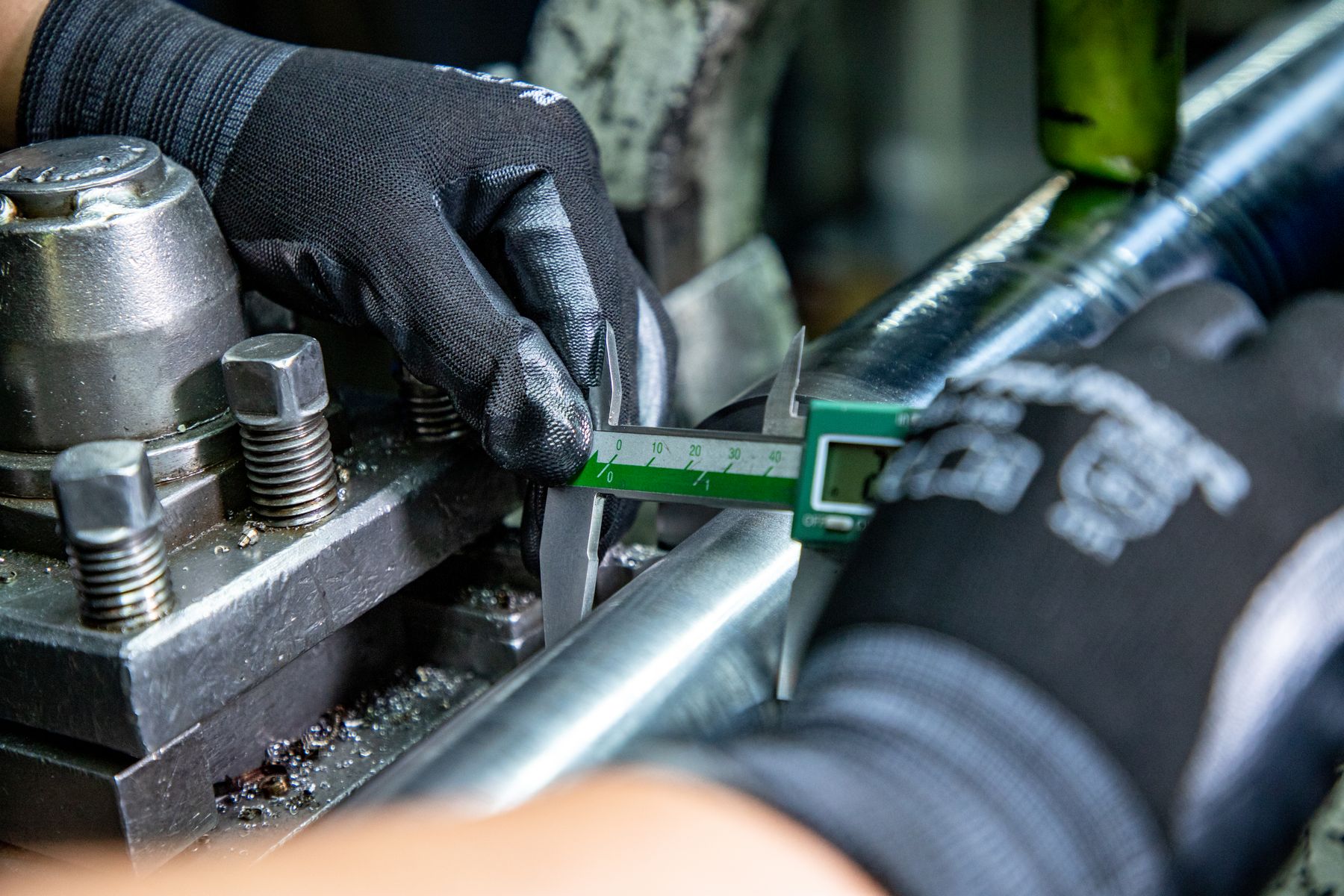

Verification is selected around geometry, tolerance, function and project requirements. The objective is not to create inspection for its own sake, but to confirm the characteristics that define acceptable supply.
Method follows
the requirement.

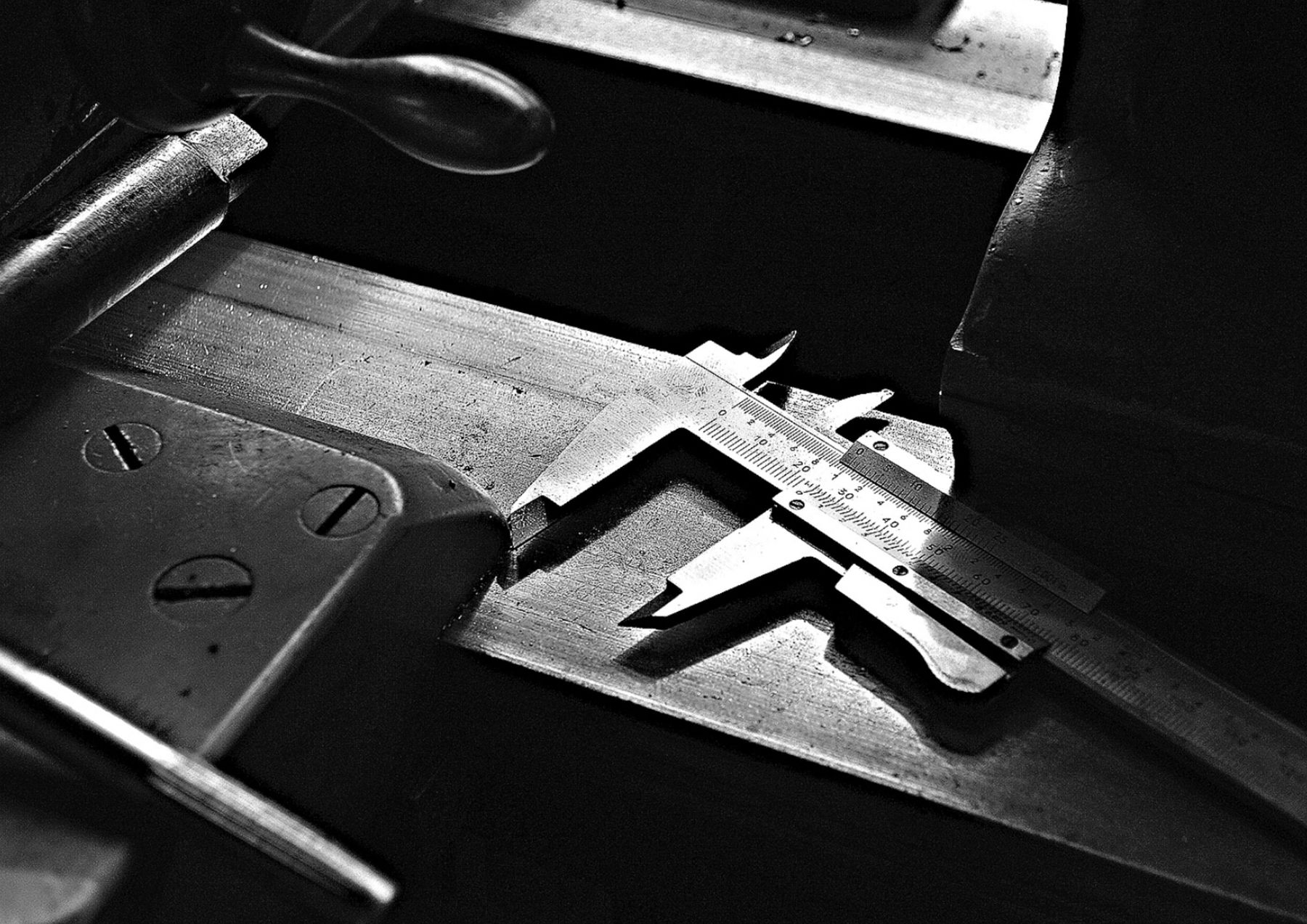

Measurement technology is chosen according to the feature and tolerance being verified. The component, geometry and agreed acceptance basis determine the inspection approach.
Inspection linked to function.
Critical features are identified from the drawing, mating geometry and application — not from a generic checklist.
Quality lives inside the route.
Technical review, production control and verification work together to protect the agreed project requirement.
Controlled from input
to industrial supply.
A strong quality route connects the original requirement to the delivered component. Each stage protects the next.
Technical Review
Drawing, CAD, material and application requirements establish the project basis.
Critical Definition
Key dimensions, interfaces, characteristics and documentation needs are identified.
Process Control
Manufacturing stages are structured around material, geometry and agreed requirements.
Verification
Relevant characteristics are checked using methods appropriate to the requirement.
Supply
Components and agreed project documentation are reviewed before release.
Quality requirements
are defined project by project.
PAMILANGA does not assume identical inspection or documentation requirements for every component. Inspection reports, material documentation, first-article requirements, special testing and other quality deliverables should be identified in the RFQ or technical review so the manufacturing route can be built around the correct acceptance basis.
Send the drawing.
Define the quality basis.
Share your drawing, CAD model, existing component or technical requirement. We will review the manufacturing and verification route against the project scope.
Submit a Drawing
